Manilhas ROV Green Pin
A manilha ROV de pino guiado Van Beest Green Pin® garante um alinhamento 100% do pino com os olhais da manilha proporcionando uma perfeita operação. A manilha ROV de pino guiado Green Pin® aprimora ainda mais a segurança através de seu inovador sistema de travamento que impede que o pino da manilha gire acidentalmente no sentido anti-horário e se solte.
A marca registrada Green Pin®, em combinação com a certificação ISO 9001, garantem qualidade e segurança aos usuários. No Brasil, a Van Beest já comercializa a linha de manilhas Green Pin através de parceria exclusiva com sua rede de distribuidores.
Green Pin® Tapered Pin ROV Shackle D
Release & retrieve ROV shackle (grade 8) with tapered pin and D-handle
• Material: bow and pin alloy steel, grade 8, polar quality, quenched and tempered• Safety factor: MBL equals 5 x WLL
• Finish: body painted white, pin painted green
• Temperature Range: -60°C up to +200°C
• Certification: 2.1 2.2 3.1 MTCa CE
• Note: supplied without wires; design your own wiring plan

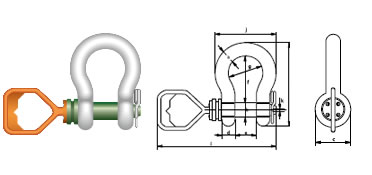

Manilha P-5361D
Green Pin® Tapered Pin ROV Shackle D
Release & retrieve ROV shackle (grade 8) with tapered pin and D-handle
• Material: bow and pin alloy steel, grade 8, polar quality, quenched and tempered• Safety factor: MBL equals 5 x WLL
• Finish: body painted white, pin painted green
• Temperature Range: -60°C up to +200°C
• Certification: 2.1 2.2 3.1 MTCa CE
• Note: supplied without wires; design your own wiring plan
Especificações em milímetro
| working | diameter | diameter | diameter | width | width | length | width | length | length | width | diameter | weight |
| load | bow | pin | eye | eye | inside | inside | bow | bolt | clamp | each | ||
| limit | ||||||||||||
| a | b | c | d | e | f | g | h | i | j | k | ||
| t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
| 6.5 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 345 | 102 | 3.5 | 1.50 |
| 9.5 | 28 | 32 | 66 | 28 | 47 | 108 | 75 | 185 | 381 | 131 | 5.5 | 3.16 |
| 12 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 201 | 393 | 147 | 6.5 | 4.31 |
| 17 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 417 | 175 | 8.5 | 7.43 |
| 25 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 300 | 464 | 216 | 8.5 | 12.84 |
| 35 | 50 | 57 | 111 | 50 | 83 | 197 | 138 | 331 | 484 | 238 | 8.5 | 18.15 |
| 42.5 | 57 | 65 | 130 | 57 | 95 | 222 | 160 | 377 | 516 | 274 | 7.5 | 26.29 |
| 55 | 65 | 70 | 145 | 65 | 105 | 260 | 180 | 433 | 545 | 310 | 7.5 | 37.60 |
Especificações em polegadas
| working | diameter | diameter | diameter | width | width | length | width | length | length | width | diameter | weight |
| load | bow | pin | eye | eye | inside | inside | bow | bolt | clamp | each | ||
| limit | ||||||||||||
| a | b | c | d | e | f | g | h | i | j | k | ||
| t | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | lbs |
| 6.5 | 7/8 | 1 | 2 1/16 | 7/8 | 1 7/16 | 3 9/32 | 2 9/32 | 5 21/32 | 13 19/32 | 4 1/32 | 1/8 | 3.31 |
| 9.5 | 1 1/8 | 1 1/4 | 2 19/32 | 1 1/8 | 1 7/8 | 4 1/4 | 2 15/16 | 7 9/32 | 15 | 5 5/32 | 7/32 | 6.97 |
| 12 | 1 1/4 | 1 3/8 | 2 27/32 | 1 9/32 | 2 | 4 17/32 | 3 9/32 | 7 29/32 | 15 15/32 | 5 25/32 | 1/4 | 9.49 |
| 17 | 1 1/2 | 1 5/8 | 3 15/32 | 1 17/32 | 2 11/32 | 5 3/4 | 3 29/32 | 9 13/16 | 16 13/32 | 6 7/8 | 11/32 | 16.37 |
| 25 | 1 3/4 | 2 | 4 1/16 | 1 25/32 | 2 29/32 | 7 | 4 15/16 | 11 13/16 | 18 9/32 | 8 1/2 | 11/32 | 28.31 |
| 35 | 2 | 2 1/4 | 4 3/8 | 1 31/32 | 3 9/32 | 7 3/4 | 5 7/16 | 13 1/32 | 19 1/16 | 9 3/8 | 11/32 | 40.01 |
| 42.5 | 2 1/4 | 2 9/16 | 5 1/8 | 2 1/4 | 3 3/4 | 8 3/4 | 6 9/32 | 14 27/32 | 20 5/16 | 10 25/32 | 9/32 | 57.96 |
| 55 | 2 1/2 | 2 3/4 | 5 23/32 | 2 9/16 | 4 1/8 | 10 1/4 | 7 9/32 | 17 1/16 | 21 15/32 | 12 7/32 | 9/32 | 82.89 |
Green Pin® Tapered Pin ROV Shackle F
Release & retrieve ROV shackle (grade 8) with tapered screw pin and Fishtail handle
• Material: bow and pin alloy steel, grade 8, polar quality, quenched and tempered• Safety factor: MBL equals 5 x WLL
• Finish: body painted white, pin painted green
• Temperature Range: -60°C up to +200°C
• Certification: 2.1 2.2 3.1 MTCa CE
• Note: supplied without wires; design your own wiring plan

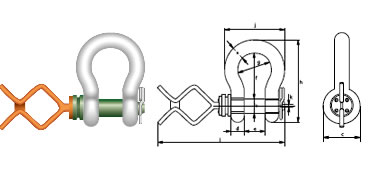

Manilha P-5361F
Green Pin® Tapered Pin ROV Shackle F
Release & retrieve ROV shackle (grade 8) with tapered screw pin and Fishtail handle
• Material: bow and pin alloy steel, grade 8, polar quality, quenched and tempered• Safety factor: MBL equals 5 x WLL
• Finish: body painted white, pin painted green
• Temperature Range: -60°C up to +200°C
• Certification: 2.1 2.2 3.1 MTCa CE
• Note: supplied without wires; design your own wiring plan
Especificações em milímetro
| working | diameter | diameter | diameter | width | width | length | width | length | length | width | diameter | weight |
| load | bow | pin | eye | eye | inside | inside | bow | bolt | each | |||
| limit | ||||||||||||
| a | b | c | d | e | f | g | h | i | j | k | ||
| t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
| 6.5 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 419 | 102 | 3.5 | 1.50 |
| 9.5 | 28 | 32 | 66 | 28 | 47 | 108 | 75 | 185 | 455 | 131 | 5.5 | 3.16 |
| 12 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 201 | 467 | 147 | 6.5 | 4.31 |
| 17 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 491 | 175 | 8.5 | 7.43 |
| 25 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 300 | 538 | 216 | 8.5 | 12.84 |
| 35 | 50 | 57 | 111 | 50 | 83 | 197 | 138 | 331 | 558 | 238 | 8.5 | 18.15 |
| 42.5 | 57 | 65 | 130 | 57 | 95 | 222 | 160 | 377 | 590 | 274 | 7.5 | 26.29 |
| 55 | 65 | 70 | 145 | 65 | 105 | 260 | 180 | 433 | 619 | 310 | 7.5 | 37.60 |
Especificações em polegadas
| working | diameter | diameter | diameter | width | width | length | width | length | length | width | diameter | weight |
| load | bow | pin | eye | eye | inside | inside | bow | bolt | each | |||
| limit | ||||||||||||
| a | b | c | d | e | f | g | h | i | j | k | ||
| t | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | lbs |
| 6.5 | 7/8 | 1 | 2 1/16 | 7/8 | 1 7/16 | 3 9/32 | 2 9/32 | 5 21/32 | 16 1/2 | 4 1/32 | 1/8 | 3.31 |
| 9.5 | 1 1/8 | 1 1/4 | 2 19/32 | 1 1/8 | 1 7/8 | 4 1/4 | 2 15/16 | 7 9/32 | 17 29/32 | 5 5/32 | 7/32 | 6.97 |
| 12 | 1 1/4 | 1 3/8 | 2 27/32 | 1 9/32 | 2 | 4 17/32 | 3 9/32 | 7 29/32 | 18 3/8 | 5 25/32 | 1/4 | 9.49 |
| 17 | 1 1/2 | 1 5/8 | 3 15/32 | 1 17/32 | 2 11/32 | 5 3/4 | 3 29/32 | 9 13/16 | 19 11/32 | 6 7/8 | 11/32 | 16.37 |
| 25 | 1 3/4 | 2 | 4 1/16 | 1 25/32 | 2 29/32 | 7 | 4 15/16 | 11 13/16 | 21 3/16 | 8 1/2 | 11/32 | 28.31 |
| 35 | 2 | 2 1/4 | 4 3/8 | 1 31/32 | 3 9/32 | 7 3/4 | 5 7/16 | 13 1/32 | 21 31/32 | 9 3/8 | 11/32 | 40.01 |
| 42.5 | 2 1/4 | 2 9/16 | 5 1/8 | 2 1/4 | 3 3/4 | 8 3/4 | 6 9/32 | 14 27/32 | 23 7/32 | 10 25/32 | 9/32 | 57.96 |
| 55 | 2 1/2 | 2 3/4 | 5 23/32 | 2 9/16 | 4 1/8 | 10 1/4 | 7 9/32 | 17 1/16 | 24 3/8 | 12 7/32 | 9/32 | 82.89 |
Green Pin® Guided Pin ROV Shackle D
Release & retrieve ROV shackle (grade 8) with guiding tube and D-handle
• Material: shackle body and pin alloy steel, grade 8, polar quality, quenched and tempered• Safety factor: MBL equals 5 x WLL
• Finish: body painted white, pin painted green
• Temperature Range: -60°C up to +200°C
• Certification:2.1 2.2 3.1 MTCa CE

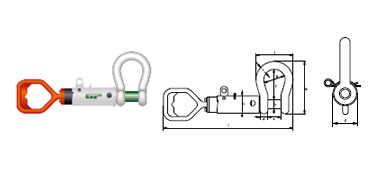

Manilha P-5362D
Green Pin® Guided Pin ROV Shackle D
Release & retrieve ROV shackle (grade 8) with guiding tube and D-handle
• Material: shackle body and pin alloy steel, grade 8, polar quality, quenched and tempered• Safety factor: MBL equals 5 x WLL
• Finish: body painted white, pin painted green
• Temperature Range: -60°C up to +200°C
• Certification:2.1 2.2 3.1 MTCa CE
Especificações em milímetro
| working | diameter | diameter | diameter | width | width | length | width | length | length | width | guide | weight | |
| load | bow | pin | eye | eye | inside | inside | bow | bolt | diameter | each | |||
| limit | close | open | |||||||||||
| a | b | c | d | e | f | g | h | j | k | ||||
| t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | |
| 12 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 201 | 569 | 652 | 147 | 83 | 10 |
| 17 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 612 | 710 | 175 | 83 | 14 |
| 25 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 300 | 683 | 802 | 216 | 83 | 19 |
| 35 | 50 | 57 | 111 | 50 | 83 | 197 | 138 | 331 | 711 | 844 | 238 | 83 | 24 |
| 42.5 | 57 | 65 | 130 | 57 | 95 | 222 | 160 | 377 | 785 | 937 | 274 | 102 | 34 |
| 55 | 65 | 70 | 145 | 65 | 105 | 260 | 180 | 433 | 824 | 994 | 310 | 102 | 45 |
Especificações em polegadas
| working | diameter | diameter | diameter | width | width | length | width | length | length | width | guide | weight | |
| load | bow | pin | eye | eye | inside | inside | bow | bolt | diameter | each | |||
| limit | close | open | |||||||||||
| a | b | c | d | e | f | g | h | j | k | ||||
| t | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | lbs | |
| 12 | 1 1/4 | 1 3/8 | 2 27/32 | 1 1/4 | 2 | 4 17/32 | 3 9/32 | 7 29/32 | 22 13/32 | 25 21/32 | 5 25/32 | 3 9/32 | 22 |
| 17 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 3/4 | 3 29/32 | 9 13/16 | 24 3/32 | 27 15/16 | 6 7/8 | 3 9/32 | 31 |
| 25 | 1 3/4 | 2 | 4 1/16 | 1 25/32 | 2 29/32 | 7 | 4 31/32 | 11 13/16 | 26 7/8 | 31 9/16 | 8 1/2 | 3 9/32 | 42 |
| 35 | 2 | 2 1/4 | 4 3/8 | 1 31/32 | 3 9/32 | 7 3/4 | 5 7/16 | 13 1/32 | 28 | 33 7/32 | 9 3/8 | 3 9/32 | 53 |
| 42.5 | 2 1/4 | 2 9/16 | 5 1/8 | 2 1/4 | 3 3/4 | 8 3/4 | 6 5/16 | 14 27/32 | 30 29/32 | 36 7/8 | 10 25/32 | 4 1/32 | 75 |
| 55 | 2 1/2 | 2 3/4 | 5 23/32 | 2 9/16 | 4 1/8 | 10 1/4 | 7 3/32 | 17 1/16 | 32 7/16 | 39 1/8 | 12 7/32 | 4 1/32 | 99 |
Green Pin® Guided Pin ROV Shackle F
Release & retrieve ROV shackle (grade 8) with guiding tube and Fishtail handle
• Material: shackle body and pin alloy steel, grade 8, polar quality, quenched and tempered• Safety factor: MBL equals 5 x WLL
• Finish: body painted white, pin painted green
• Temperature Range: -60°C up to +200°C
• Certification:2.1 2.2 3.1 MTCa CE

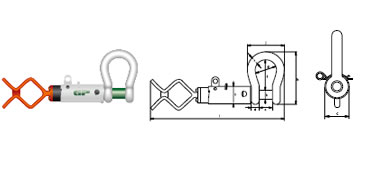

Manilha P-5362F
Green Pin® Guided Pin ROV Shackle F
Release & retrieve ROV shackle (grade 8) with guiding tube and Fishtail handle
• Material: shackle body and pin alloy steel, grade 8, polar quality, quenched and tempered• Safety factor: MBL equals 5 x WLL
• Finish: body painted white, pin painted green
• Temperature Range: -60°C up to +200°C
• Certification:2.1 2.2 3.1 MTCa CE
Especificações em milímetro
| working | diameter | diameter | diameter | width | width | length | width | length | length | width | guide | weight | |
| load | bow | pin | eye | eye | inside | inside | bow | bolt | diameter | each | |||
| limit | close | open | |||||||||||
| a | b | c | d | e | f | g | h | j | k | ||||
| t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | |
| 12 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 201 | 643 | 726 | 147 | 83 | 10 |
| 17 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 686 | 784 | 175 | 83 | 14 |
| 25 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 300 | 757 | 876 | 216 | 83 | 19 |
| 35 | 50 | 57 | 111 | 50 | 83 | 197 | 138 | 331 | 785 | 918 | 238 | 83 | 24 |
| 42.5 | 57 | 65 | 130 | 57 | 95 | 222 | 160 | 377 | 859 | 1011 | 274 | 102 | 34 |
| 55 | 65 | 70 | 145 | 65 | 105 | 260 | 180 | 433 | 898 | 1068 | 310 | 102 | 45 |
Especificações em polegadas
| working | diameter | diameter | diameter | width | width | length | width | length | length | width | guide | weight | |
| load | bow | pin | eye | eye | inside | inside | bow | bolt | diameter | each | |||
| limit | close | open | |||||||||||
| a | b | c | d | e | f | g | h | j | k | ||||
| t | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | lbs | |
| 12 | 1 1/4 | 1 3/8 | 2 27/32 | 1 1/4 | 2 | 4 17/32 | 3 9/32 | 7 29/32 | 25 5/16 | 28 19/32 | 5 25/32 | 3 9/32 | 22 |
| 17 | 1 1/2 | 1 5/8 | 3 15/32 | 1 1/2 | 2 3/8 | 5 3/4 | 3 29/32 | 9 13/16 | 27 | 30 7/8 | 6 7/8 | 3 9/32 | 31 |
| 25 | 1 3/4 | 2 | 4 1/16 | 1 25/32 | 2 29/32 | 7 | 4 31/32 | 11 13/16 | 29 13/16 | 34 1/2 | 8 1/2 | 3 9/32 | 42 |
| 35 | 2 | 2 1/4 | 4 3/8 | 1 31/32 | 3 9/32 | 7 3/4 | 5 7/16 | 13 1/32 | 30 29/32 | 36 5/32 | 9 3/8 | 3 9/32 | 53 |
| 42.5 | 2 1/4 | 2 9/16 | 5 1/8 | 2 1/4 | 3 3/4 | 8 3/4 | 6 5/16 | 14 27/32 | 33 13/16 | 39 13/16 | 10 25/32 | 4 1/32 | 75 |
| 55 | 2 1/2 | 2 3/4 | 5 23/32 | 2 9/16 | 4 1/8 | 10 1/4 | 7 3/32 | 17 1/16 | 35 11/32 | 42 1/16 | 12 7/32 | 4 1/32 | 99 |
Green Pin® Spring Pin ROV Shackle
Release ROV shackle (grade 8) with spring pins
• Material:bow and pin alloy steel, grade 8, Polar quality, quenched and tempered• Safety factor: MBL equals 5 x WLL
• Finish: body painted white, pin painted green
• Temperature Range: -60°C up to +200°C
• Certification:2.1 2.2 3.1 MTCa CE
• Note:for in-line use only.
supplied without wires; design your own wiring plan

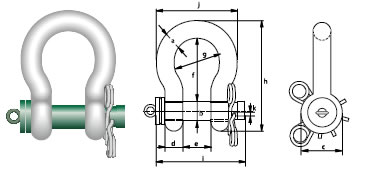

Manilha P-5363
Green Pin® Spring Pin ROV Shackle
Release ROV shackle (grade 8) with spring pins
• Material:bow and pin alloy steel, grade 8, Polar quality, quenched and tempered• Safety factor: MBL equals 5 x WLL
• Finish: body painted white, pin painted green
• Temperature Range: -60°C up to +200°C
• Certification:2.1 2.2 3.1 MTCa CE
• Note:for in-line use only.
supplied without wires; design your own wiring plan
Especificações em milímetro
| working | diameter | diameter | diameter | width | width | length | width | length | length | width | diameter | weight |
| load | bow | pin | eye | eye | inside | inside | bow | bolt | each | |||
| limit | ||||||||||||
| a | b | c | d | e | f | g | h | i | j | k | ||
| t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
| 6.5 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 144 | 130 | 102 | 5.5 | 1.7 |
| 9.5 | 28 | 32 | 66 | 28 | 47 | 108 | 75 | 185 | 166 | 131 | 6.5 | 3.4 |
| 12 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 201 | 184 | 147 | 6.5 | 4.7 |
| 17 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 202 | 175 | 6.5 | 8 |
| 25 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 300 | 243 | 216 | 8.5 | 13.6 |
| 35 | 50 | 57 | 116 | 50 | 83 | 197 | 138 | 334 | 269 | 238 | 8.5 | 19.1 |
| 42.5 | 57 | 65 | 130 | 57 | 95 | 222 | 160 | 377 | 301 | 274 | 8.5 | 28.3 |
| 55 | 65 | 70 | 145 | 65 | 105 | 260 | 180 | 433 | 329 | 310 | 8.5 | 38 |
| 85 | 75 | 83 | 162 | 75 | 127 | 329 | 190 | 527 | 375 | 340 | 8.5 | 60 |
Especificações em polegadas
| working | diameter | diameter | diameter | width | width | length | width | length | length | width | diameter | weight |
| load | bow | pin | eye | eye | inside | inside | bow | bolt | each | |||
| limit | ||||||||||||
| a | b | c | d | e | f | g | h | i | j | k | ||
| t | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | lbs |
| 6.5 | 7/8 | 1 | 2 1/32 | 7/8 | 1 7/16 | 3 9/32 | 2 9/32 | 5 11/16 | 5 1/8 | 4 | 7/32 | 3.75 |
| 9.5 | 1 1/8 | 1 1/4 | 2 19/32 | 1 1/8 | 1 7/8 | 4 1/4 | 2 15/16 | 7 9/32 | 6 17/32 | 5 5/32 | 1/4 | 7.5 |
| 12 | 1 1/4 | 1 3/8 | 2 13/16 | 1 9/32 | 2 | 4 17/32 | 3 9/32 | 7 29/32 | 7 1/4 | 5 25/32 | 1/4 | 10.36 |
| 17 | 1 1/2 | 1 5/8 | 3 1/2 | 1 17/32 | 2 11/32 | 5 3/4 | 3 29/32 | 9 13/16 | 7 15/16 | 6 7/8 | 1/4 | 17.64 |
| 25 | 1 3/4 | 2 | 4 1/32 | 1 25/32 | 2 29/32 | 7 | 4 15/16 | 11 13/16 | 9 19/32 | 8 17/32 | 11/32 | 30.0 |
| 35 | 2 | 2 1/4 | 4 9/16 | 1 31/32 | 3 9/32 | 7 3/4 | 5 7/16 | 13 5/32 | 10 19/32 | 9 3/8 | 11/32 | 42.1 |
| 42.5 | 2 1/4 | 2 9/16 | 5 1/8 | 2 1/4 | 3 3/4 | 8 3/4 | 6 9/32 | 14 13/16 | 11 7/8 | 10 25/32 | 11/32 | 62.4 |
| 55 | 2 1/2 | 2 3/4 | 5 23/32 | 2 9/16 | 4 1/8 | 10 1/4 | 7 3/32 | 17 3/32 | 12 15/16 | 12 3/16 | 11/32 | 83.8 |
| 85 | 3 | 3 1/4 | 6 11/32 | 2 15/16 | 5 | 12 15/16 | 7 1/2 | 20 3/4 | 14 3/4 | 13 3/8 | 11/32 | 132.3 |
Green Pin® Locking Clamp ROV Shackle
Release ROV shackle (grade 8) with locking clamp
• Material: bow and pin alloy steel, grade 8, Polar quality, quenched and tempered• Safety factor: MBL equals 6 x WLL
for shackles with WLL 120 t and up the MBL equals 5x WLL
• Finish: body painted white, pin painted green
• Temperature Range: -60°C up to +200°C
• Certification:2.1 2.2 3.1 MTCa MTCb * LROS * CE
• Note:supplied without wires; design your own wiring plan
* For shackles ≥ WLL 150 t
Manilha P-5365

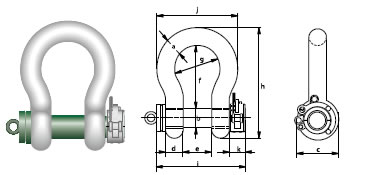

Green Pin® Locking Clamp ROV Shackle
Release ROV shackle (grade 8) with locking clamp
• Material: bow and pin alloy steel, grade 8, Polar quality, quenched and tempered• Safety factor: MBL equals 6 x WLL
for shackles with WLL 120 t and up the MBL equals 5x WLL
• Finish: body painted white, pin painted green
• Temperature Range: -60°C up to +200°C
• Certification:2.1 2.2 3.1 MTCa MTCb * LROS * CE
• Note:supplied without wires; design your own wiring plan
* For shackles ≥ WLL 150 t
Especificações em milímetro
| working | diameter | diameter | diameter | width | width | length | width | length | length | width | width | weight |
| load | bow | pin | eye | eye | inside | inside | bow | bolt | locking | each | ||
| limit | clamp | |||||||||||
| a | b | c | d | e | f | g | h | i | j | k | ||
| t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
| 6.5 | 22 | 25 | 52 | 22 | 36 | 83 | 58 | 164 | 131 | 102 | 31 | 2.27 |
| 9.5 | 28 | 32 | 66 | 28 | 47 | 108 | 75 | 200 | 166 | 131 | 31 | 4.25 |
| 12 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 213 | 184 | 147 | 31 | 5.36 |
| 17 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 266 | 206 | 175 | 40 | 9.27 |
| 25 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 309 | 243 | 216 | 40 | 14.62 |
| 35 | 50 | 57 | 116 | 50 | 83 | 197 | 138 | 350 | 269 | 238 | 40 | 20.75 |
| 42.5 | 57 | 65 | 130 | 57 | 95 | 222 | 160 | 377 | 301 | 274 | 40 | 28.33 |
| 55 | 65 | 70 | 145 | 65 | 105 | 260 | 180 | 440 | 329 | 310 | 40 | 41 |
| 85 | 75 | 83 | 162 | 75 | 127 | 329 | 190 | 527 | 375 | 340 | 40 | 61 |
| 120 | 95 | 95 | 208 | 91 | 147 | 400 | 238 | 647 | 440 | 428 | 60 | 110 |
| 150 | 105 | 108 | 238 | 102 | 169 | 410 | 275 | 688 | 490 | 485 | 60 | 160 |
| 200 | 120 | 130 | 279 | 113 | 179 | 513 | 290 | 838 | 520 | 530 | 60 | 235 |
| 250 | 130 | 140 | 299 | 118 | 205 | 554 | 305 | 904 | 560 | 565 | 60 | 285 |
Especificações em polegadas
| working | diameter | diameter | diameter | width | width | length | width | length | length | width | width | weight |
| load | bow | pin | eye | eye | inside | inside | bow | bolt | locking | each | ||
| limit | clamp | |||||||||||
| a | b | c | d | e | f | g | h | i | j | k | ||
| t | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | lbs |
| 6.5 | 7/8 | 1 | 2 1/32 | 7/8 | 1 7/16 | 3 9/32 | 2 9/32 | 6 7/16 | 5 5/32 | 4 | 1 7/32 | 5.00 |
| 9.5 | 1 1/8 | 1 1/4 | 2 19/32 | 1 1/8 | 1 7/8 | 4 1/4 | 2 15/16 | 7 7/8 | 6 17/32 | 5 5/32 | 1 7/32 | 9.37 |
| 12 | 1 1/4 | 1 3/8 | 2 13/16 | 1 9/32 | 2 | 4 17/32 | 3 9/32 | 8 /8 | 7 1/4 | 5 25/32 | 1 7/32 | 11.82 |
| 17 | 1 1/2 | 1 5/8 | 3 1/2 | 1 17/32 | 2 11/32 | 5 3/4 | 3 29/32 | 10 1/2 | 8 1/8 | 6 7/8 | 1 9/16 | 20.44 |
| 25 | 1 3/4 | 2 | 4 1/32 | 1 25/32 | 2 29/32 | 7 | 4 15/16 | 12 5/32 | 9 19/32 | 8 17/32 | 1 9/16 | 32.23 |
| 35 | 2 | 2 1/4 | 4 9/16 | 1 31/32 | 3 9/32 | 7 3/4 | 5 7/16 | 13 25/32 | 10 19/32 | 9 3/8 | 1 9/16 | 45.75 |
| 42.5 | 2 1/4 | 2 9/16 | 5 1/8 | 2 1/4 | 3 3/4 | 8 3/4 | 6 9/32 | 14 13/16 | 11 7/8 | 10 25/32 | 1 9/16 | 62.5 |
| 55 | 2 1/2 | 2 3/4 | 5 23/32 | 2 9/16 | 4 1/8 | 10 1/4 | 7 3/32 | 17 11/32 | 12 15/16 | 12 3/16 | 1 9/16 | 90.4 |
| 85 | 3 | 3 1/4 | 6 11/32 | 2 15/16 | 5 | 12 15/16 | 7 1/2 | 20 3/4 | 14 3/4 | 13 3/8 | 1 9/16 | 134.5 |
| 120 | 3 3/4 | 3 3/4 | 8 3/16 | 3 19/32 | 5 25/32 | 15 3/4 | 9 3/8 | 25 1/2 | 17 11/32 | 16 7/8 | 2 11/32 | 243 |
| 150 | 4 1/8 | 4 1/4 | 9 3/8 | 4 | 6 5/8 | 16 5/32 | 10 13/16 | 27 3/32 | 19 5/16 | 19 1/8 | 2 11/32 | 353 |
| 200 | 4 23/32 | 5 1/8 | 11 | 4 7/16 | 7 1/32 | 20 3/16 | 11 7/16 | 33 | 20 1/2 | 20 7/8 | 2 11/32 | 518 |
| 250 | 5 1/8 | 5 1/2 | 11 25/32 | 4 5/8 | 8 3/32 | 21 13/16 | 12 | 35 19/32 | 22 1/32 | 22 1/4 | 2 11/32 | 628 |
Green Pin® Spring Release ROV Shackle
Release ROV shackle (grade 8) with spring
• Material: bow and pin alloy steel, grade 8, Polar quality, quenched and tempered• Safety factor: MBL equals 5 x WLL
• Finish: body painted white, pin painted green
• Temperature Range: -40°C up to +200°C
• Certification:2.1 2.2 3.1 MTC a LROS * CE
• Note:for in-line use only.
this shackle is assembled with wire rope slings and monkey’s fist for size starting from
WLL 42.5 up to and including 150 t a special compression tool (sold separately) is
required to assemble the shackle.
Manilha P-5367

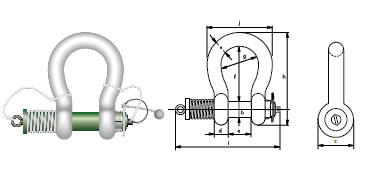

Green Pin® Spring Release ROV Shackle
Release ROV shackle (grade 8) with spring
• Material: bow and pin alloy steel, grade 8, Polar quality, quenched and tempered• Safety factor: MBL equals 5 x WLL
• Finish: body painted white, pin painted green
• Temperature Range: -40°C up to +200°C
• Certification:2.1 2.2 3.1 MTC a LROS * CE
• Note:for in-line use only.
this shackle is assembled with wire rope slings and monkey’s fist for size starting from
WLL 42.5 up to and including 150 t a special compression tool (sold separately) is
required to assemble the shackle.
Especificações em milímetro
| working | diameter | diameter | diameter | width | width | length | width | length | length | width | weight |
| load | bow | pin | eye | eye | inside | inside | bow | bolt | each | ||
| limit | |||||||||||
| a | b | c | d | e | f | g | h | i | j | ||
| t | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
| 12 | 32 | 35 | 72 | 32 | 51 | 115 | 83 | 201 | 291 | 147 | 5.24 |
| 13.5 | 35 | 38 | 80 | 35 | 57 | 133 | 92 | 227 | 301 | 162 | 7 |
| 17 | 38 | 42 | 88 | 38 | 60 | 146 | 99 | 249 | 360 | 175 | 9.25 |
| 25 | 45 | 50 | 103 | 45 | 74 | 178 | 126 | 300 | 370 | 216 | 15.5 |
| 35 | 50 | 57 | 116 | 50 | 83 | 197 | 138 | 334 | 400 | 238 | 20.4 |
| 42.5 | 57 | 65 | 130 | 57 | 95 | 222 | 160 | 377 | 460 | 274 | 39 |
| 55 | 65 | 70 | 145 | 65 | 105 | 260 | 180 | 433 | 490 | 310 | 42 |
| 85 | 75 | 83 | 162 | 75 | 127 | 329 | 190 | 527 | 587 | 340 | 67 |
| 120 | 95 | 95 | 208 | 91 | 147 | 399 | 238 | 646 | 687 | 428 | 123 |
| 150 | 105 | 108 | 238 | 102 | 169 | 410 | 275 | 688 | 727 | 485 | 168 |
Especificações em polegadas
| working | diameter | diameter | diameter | width | width | length | width | length | length | width | weight |
| load | bow | pin | eye | eye | inside | inside | bow | bolt | each | ||
| limit | |||||||||||
| a | b | c | d | e | f | g | h | i | j | ||
| t | inch | inch | inch | inch | inch | inch | inch | inch | inch | inch | lbs |
| 12 | 1 1/4 | 1 3/8 | 2 13/16 | 1 9/32 | 2 | 4 17/32 | 3 9/32 | 7 29/32 | 11 1/2 | 5 25/32 | 11.55 |
| 13.5 | 1 3/8 | 1 1/2 | 3 5/32 | 1 3/8 | 2 1/4 | 5 1/4 | 3 5/8 | 8 15/16 | 11 7/8 | 6 11/32 | 15.43 |
| 17 | 1 1/2 | 1 5/8 | 3 1/2 | 1 17/32 | 2 11/32 | 5 3/4 | 3 29/32 | 9 13/16 | 14 5/32 | 6 7/8 | 20.39 |
| 25 | 1 3/4 | 2 | 4 1/32 | 1 25/32 | 2 29/32 | 7 | 4 15/16 | 11 13/16 | 14 9/16 | 8 17/32 | 34.2 |
| 35 | 2 | 2 1/4 | 4 9/16 | 1 31/32 | 3 9/32 | 7 3/4 | 5 7/16 | 13 5/32 | 15 3/4 | 9 3/8 | 45 |
| 42.5 | 2 1/4 | 2 9/16 | 5 1/8 | 2 1/4 | 3 3/4 | 8 3/4 | 6 9/32 | 14 13/16 | 18 1/8 | 10 25/32 | 86 |
| 55 | 2 1/2 | 2 3/4 | 5 23/32 | 2 9/16 | 4 1/8 | 10 1/4 | 7 3/32 | 17 3/32 | 19 5/16 | 12 3/16 | 92.6 |
| 85 | 3 | 3 1/4 | 6 11/32 | 2 15/16 | 5 | 12 15/16 | 7 1/2 | 20 3/4 | 23 1/8 | 13 3/8 | 147.7 |
| 120 | 3 3/4 | 3 3/4 | 8 3/16 | 3 19/32 | 5 25/32 | 15 23/32 | 9 3/8 | 25 7/16 | 27 1/32 | 16 7/8 | 271 |
| 150 | 4 1/8 | 4 1/4 | 9 3/8 | 4 | 6 5/8 | 16 5/32 | 10 13/16 | 27 3/32 | 28 19/32 | 19 1/8 | 370 |
Green Pin® Compression Tool
Tool to wind up spring release shackle (sizes WLL 42.5T and up)
• Material: mild steel• Finish: black painted
• Note:required for ROV spring release shackle (type P-5367), for sizes WLL 42.5 t and up
• Certification:2.1
Manilha P-5368

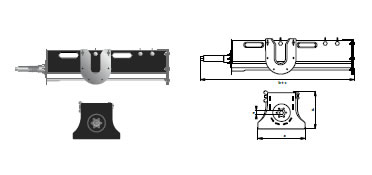

Green Pin® Compression Tool
Tool to wind up spring release shackle (sizes WLL 42.5T and up)
• Material: mild steel• Finish: black painted
• Note:required for ROV spring release shackle (type P-5367), for sizes WLL 42.5 t and up
• Certification:2.1
Especificações em milímetro
| for | diameter | diameter | width | length | length | height | width | weight |
| shackle | bow | pin | closed | opened | each | |||
| WLL | position | position | ||||||
| a | b | a | b | c | d | e | ||
| t | mm | mm | mm | mm | mm | mm | mm | kg |
| 42.5 | 57 | 65 | 300 | 1000 | 1500 | 225 | 24 | 34 |
| 55 | 65 | 70 | ||||||
| 85 | 75 | 83 | ||||||
| 120 | 95 | 95 | 340 | 1100 | 1750 | 285 | 24 | 42 |
| 150 | 105 | 108 |
Especificações em polegadas
| for | diameter | diameter | width | length | length | height | width | weight |
| shackle | bow | pin | closed | opened | each | |||
| WLL | position | position | ||||||
| a | b | a | b | c | d | e | ||
| t | inch | inch | inch | inch | inch | inch | inch | lbs |
| 42.5 | 2 1/4 | 2 9/16 | 11 13/16 | 39 3/8 | 59 1/16 | 8 7/8 | 15/16 | 75 |
| 55 | 2 1/2 | 2 3/4 | ||||||
| 85 | 3 | 3 1/4 | ||||||
| 120 | 3 3/4 | 3 3/4 | 13 3/8 | 43 5/6 | 68 29/32 | 11 1/4 | 15/16 | 92.6 |
| 150 | 4 1/8 | 4 1/4 |
